On April 1, 1949, Allen Ray and his wife, Peggy, opened the doors of Ray Products in Alhambra. At the time, Ray Products was a 1,000 sq. ft. custom fabrication shop that produced plastic baby bassinets. Why plastic baby bassinets? Allen had posited—correctly, as it turns out—that clear plastic bassinets would make it easier for hospital staff to monitor many newborn babies at once.

If Allen and Peggy came back today, they might be surprised by what Ray Products has become over the last seven decades. Almost 50 of their original workshops could fit in our current 48,000 sq. ft. manufacturing space in Ontario. I can’t imagine what they’d think of our 6-axis robotic trimmers, but I know they’d appreciate our state-of-the-art thermoforming equipment that enables us to produce high-quality, customized plastic parts used worldwide in industries like medical devices, transportation, green energy, automotive, building and construction, and recreational equipment.

I’m also confident they’d recognize the qualities that earned them success all those decades ago: innovation, perseverance, and a fierce commitment to doing things the right way. They’d see and deeply appreciate employees who give us their best—staying with us for 10, 20 and sometimes even 50 years. They’d be delighted to discover how many of our customers and suppliers know the value of a handshake, know quality when they see it, and make a point to invest in our country by seeking out domestic manufacturing partners like us.

I’m also pretty certain they’d be unspeakably proud. After all, 70 years for a small, family-owned business is no small feat. And while good old-fashioned luck certainly played a role, I genuinely believe our success is no accident. We owe this milestone to:

• Allen and Peggy Ray, who founded this company with the values that still propel us today.
• Their son Bruce, who led the company through 20 years of incredible growth with determination and gumption.
• The dedicated employees who have given us their time, talent and hard work.
• The customers and partners who have given us the opportunity to earn—and keep—their trust and support.
• A commitment to innovation and a near-pathological obsession with getting it right (or so I’m told).

Here’s to the next 70.

Brian Ray
President

This post is a preview of the in-depth information included in our Thermoforming Handbook, a guide previously only available to our customers and partners.

If you would like a copy of our design handbook (or any other technical materials), please click here to access our library page.

---



The Process of Thermoforming

Both pressure forming and vacuum forming are processes that are easiest to understand when they’re explained visually.



Step 1

First, a sheet of thermoplastic is heated until it becomes pliable and moldable.



Step 2: Vacuum Forming

In the vacuum forming process, the plastic is stretched over a single male mold, and the air is vacuumed out from underneath the mold.



Step 2: Pressure Forming

In pressure forming, the heated plastic is placed between male and female molds, which are then pressed against the plastic sheet using compressed air at a pressure that ranges from 20 to 100 psi.



Step 3

Finally, the now molded plastic part is removed from the mold and allowed to cool. It’s then moved to a trimming station where the excess plastic is removed with a six-axis fully robotic trimming machine.



---



Key Advantages of Thermoforming

Cost at Quantity

If your part requirements range from the low hundreds to the high thousands, thermoforming is almost always the chosen process.

Large Part Capability

Our thermoforming machine, the largest on the West Coast, can create single pieces up to a full 10 feet x 18 feet, with up to 40 inches of depth.

Huge Thermoplastic Material Selection

Any color, including metallics, fire-rated, impact-resistant, UV resistant, antibacterial properties, ROHS/REACH compliant, recyclable and so much more.

Complex Geometry Without High Costs

Make complex shapes without high tooling costs.

Part-to-Part Repeatability

Consistency and precision from part number 1 to part number 5,555; with no warpage, improved flatness and zero residual stress.

Molded-In-Features for Easy Assembly

Make assembly cheaper and faster with undercuts, molded-in attachment points, tabs, slots and more.

Beautiful & Flexible Finishing Options

Mold in color and texture, paint, silkscreen, EMI/RFI shielding and more. The choice is yours.

Lower Cost Design Changes

Make changes quickly without spending thousands on new or reworked tooling.

Pick a Texture, Any Texture

From high-gloss to matte to custom, you’ve got options for textures.



---



Comparing Vacuum Forming & Pressure Forming

	Vacuum Forming	Pressure Forming
Description	A sheet of plastic material is heated to pliability, then pressed against a 3D mold by vacuuming out the air between the sheet and the mold.	A sheet of plastic material is heated to pliability, then pressed against a 3D female cavity mold by vacuuming out the air between the sheet and the mold, and applying compressed air from 20 to 100 psi above the plastic sheet.
Common Applications	Outdoor UV-resistant projects High-gloss surfaces High-impact applications Recycled materials applications	Complex shapes Parts with vents or louvers Projects with tighter tolerances Molded-in attachment points
Often Used to Create	Point-of-purchase displays Automotive aftermarket, interior/exterior Recreational vehicles Pool and spa components Dunnage material handling trays and pallets Fitness equipment Reusable medical trays or bins	Medical device enclosures Office equipment Vented equipment enclosures Scientific instruments Detailed components Control panels Multi-part assemblies Kiosk/POS enclosures Mass transit components Equipment enclosures, bezels, housings and covers
Dimensions	Male tool, vacuum formed parts to be dimensioned to the inside surfaces of the part.	Female tool, pressure formed parts to be dimensioned to the outside surfaces of the part.

This is the seventh post in our series from our Thermoforming Handbook, a guide that, until now, was only available to our customers and partners. We’re releasing the whole thing in a series of posts right here on our blog.

We’ve previously released:

• Chapter 1: An Overview of Thermoforming
• Chapter 2: Designing for Thermoforming
• Chapter 3: Tooling, The Foundation of Thermoforming
• Chapter 4: Thermoforming Materials Selection
• Chapter 5: Thermoforming Tolerances
• Chapter 6: Trimming

If you’re someone who uses custom plastic manufacturing professionally and you’re interested in getting your own copy, just send us a message and we’ll be happy to send you one. As always, these are general guidelines. Any project or design needs to be reviewed by a qualified thermoforming professional before it goes into production, and the sooner you get one of those qualified professionals involved in the process, the smoother things tend to go.  If you’re looking for a qualified professional, we know a few who would be happy to help.

---

The last part of the thermoforming process is finishing.  This term can encompass anything that happens after the final part is trimmed, including painting, silk-screening, the attachment of fasteners and in some cases even assembly and logistics.

Painting

Sure, you can thermoform in color, but there are a few reasons you still might want to consider painting.

Painting Options

• Standard paints
• Custom colored paints
• Master batching with other suppliers
• Metallic paints
• Multi-color parts
• Small lot customization

Silk Screening

Silk-screened text, images and logos can be used to brand, label and improve the aesthetics of thermoformed parts.

Specialty Finishes

EMI/RF Shielding – Special copper paint, used to block interference from electronic devices.

Hot Stamping – A process where metal foil text or graphics are permanently affixed to the thermoformed plastic.

Plating – Plated plastic is plastic that has been covered in a metal coating for the purposes of EMI/RF shielding, ESD prevention, wear resistance or a thermal or chemical barrier.

Embossing/Debossing – A process where heat is used to make a 3D impression/depression on the plastic, for a detailed feature like a logo  or graphic.

Attached Fasteners

Bosses, inserts and other fasteners are attached with adhesive during the finishing process. They offer significant design flexibility, but can also increase costs.

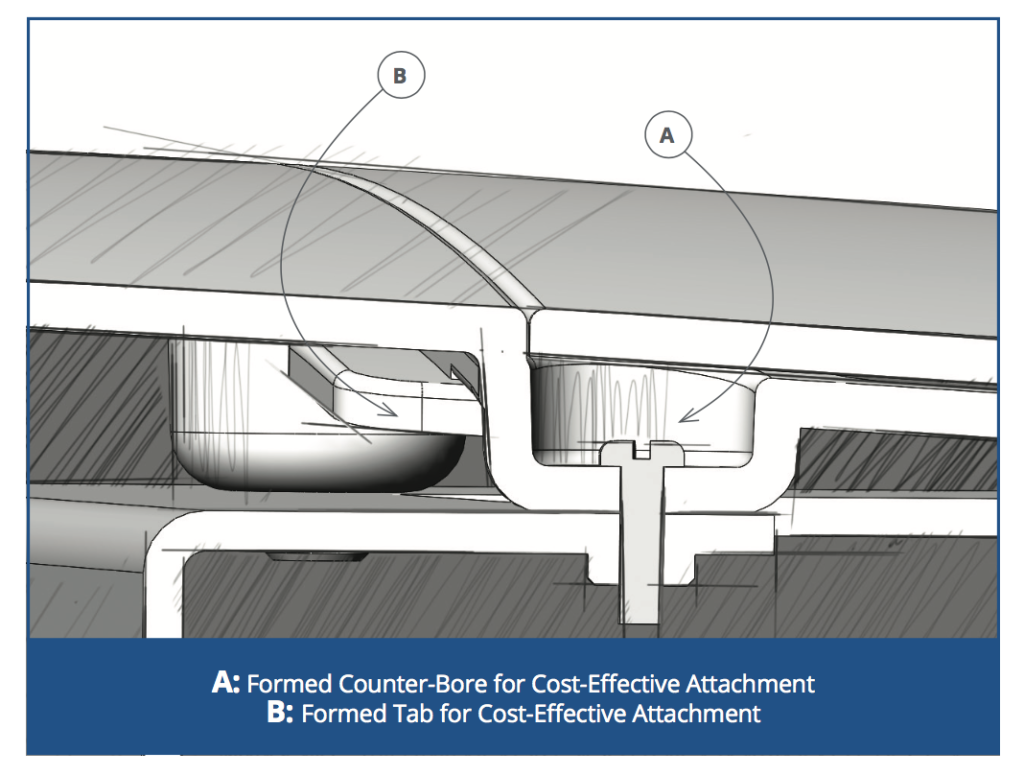

Pressure forming allows for molded attachment points like tabs, counter- bores or counter sinks.

Tech Tip:

Fastening is one of the most important issues to address in the design ofplasticparts.Inthermoforming,itisnotpossibletomoldina boss or insert without it being visible on both surfaces of the part. Many types of fasteners and attachment options are available, and we are ready to work with you to meet the fastening requirements of your parts.

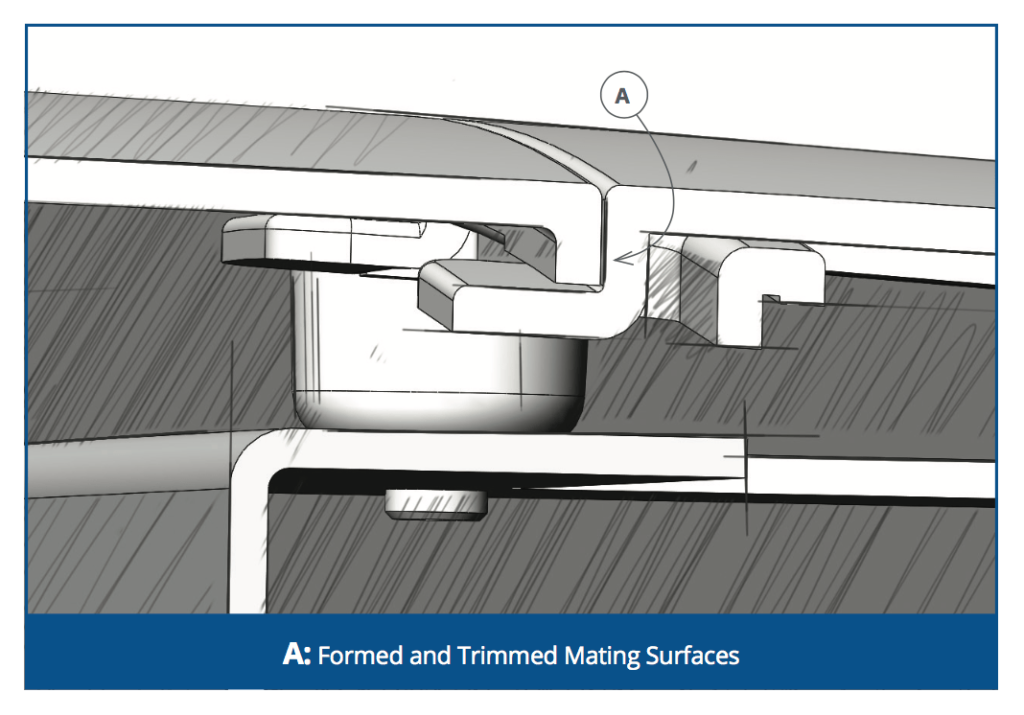

Molded-In Features

Molded-in features like snap-fits, tabs and receiving slots are affordable fastening options, and don’t generally add significantly to the total project cost.

Bonded Bosses With Inserts

Bonded bosses with inserts can help to form a secure attachment between two parts, but they do add some costs to building the part.

Tech Tip

Unlike injection molding or other processes, our bosses can be added, subtracted or moved without any impact to tooling.

We’re Ready to Help

Have questions about finishing on your next thermoforming project? We’d be happy to help.  Get in touch today.

This is the fifth post in our series from our Thermoforming Handbook, a guide that, until now, was only available to our customers and partners. We’re releasing the whole thing in a series of posts right here on our blog.

We’ve previously released:

• Chapter 1: An Overview of Thermoforming
• Chapter 2: Designing for Thermoforming
• Chapter 3: Tooling, The Foundation of Thermoforming
• Chapter 4: Thermoforming Materials Selection

If you’re someone who uses custom plastic manufacturing professionally and you’re interested in getting your own copy, just send us a message and we’ll be happy to send you one. As always, these are general guidelines. Any project or design needs to be reviewed by a qualified thermoforming professional before it goes into production, and the sooner you get one of those qualified professionals involved in the process, the smoother things tend to go.  If you’re looking for a qualified professional, we know a few who would be happy to help.



Open up an engineering textbook, and it’ll likely define tolerances as the “permissible limit or limits of variation.” To put it more simply, how close to your exact specification can you expect the final product to be?

Every manufacturing process has unique tolerances, and thermoforming is no different. It’s important to note that what we’re listing here are industry standard thermoforming tolerances. If you have a project that demands tolerances tighter than what is standard in the industry, we’d be happy to hear from you. Our team loves a good challenge.
